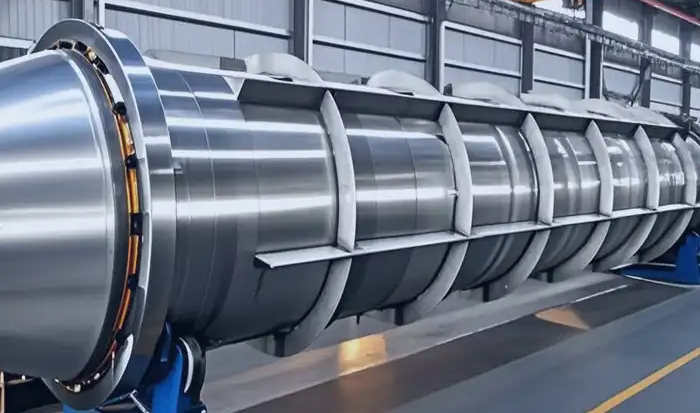

FUMI Sintering Rotary Kiln — Industrial SAW Flux Production Line
SAW FLUX PRODUCTION LINE SPECIALISTS

End-to-End Intelligent
Solutions for SAW Flux
Production Lines

Trusted by industry leaders across Asia & globally. 30+ years of rotary kiln manufacturing excellence, 15+ years of dedicated flux line expertise.

Explore Our Equipment Get a Free Consultation
0 Years of Craftsmanship
0 Years in Flux Lines
0 TPY Largest Client
0 Major Global Clients
Why FUMI

Built for the Demands of Modern Flux Production

Three core advantages that set FUMI apart in SAW flux production line manufacturing: automation, energy efficiency, and precision.

Advanced Production Automation

Fully automated control from batching to packing. PLC-integrated centralized monitoring ensures batch-to-batch consistency and reduces manual intervention to near zero.

Eco-Friendly & Low Energy

Heat recovery from the cooling kiln feeds back into the sintering process, reducing energy consumption per ton by up to 30% versus older outer-fired designs.

Flexible & Precision Manufacturing

Multi-formula one-click switching. 3-point load cells + VFD conveyors achieve ±0.2% weighing accuracy. Our folding layout saves 15m+ of floor space vs. traditional setups.

Company Profile

30 Years of Craftsmanship

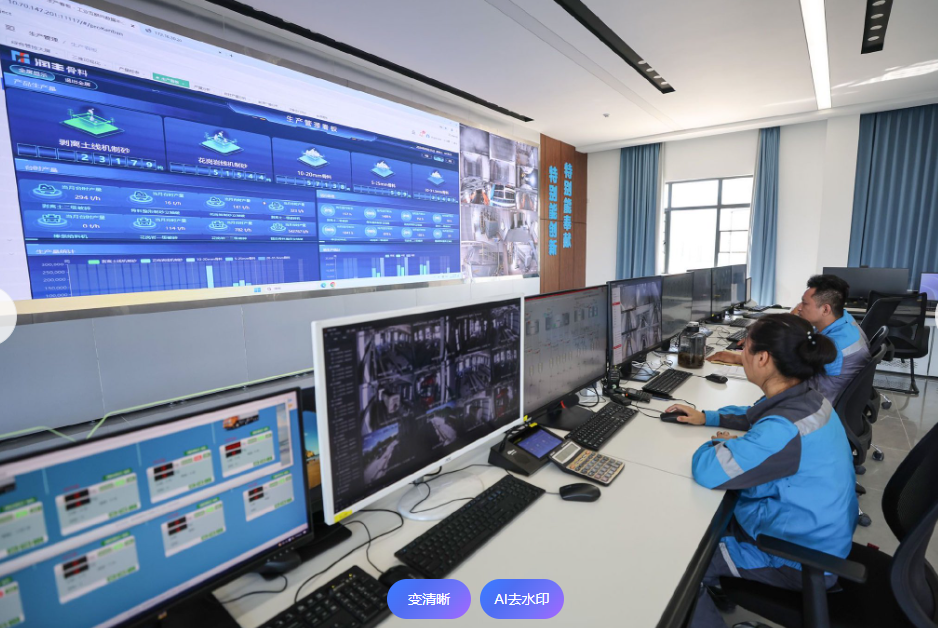

FUMI Central Control Room — Siemens PLC monitoring system

FUMI Consulting designs and manufactures turnkey submerged arc welding (SAW) flux production lines, including 310S stainless steel rotary sintering kilns, drum granulator-dryers, automatic batching systems, and ABB robotic packaging lines. Since the 1990s, we have accumulated over 30 years of industrial kiln manufacturing craftsmanship and 15 years of dedicated SAW flux line expertise, delivering end-to-end intelligent manufacturing solutions.

Our clients include some of the largest sintered flux producers in Asia, manufacturing for globally recognized brands such as Lincoln Electric, ESAB, and ITW. Our equipment processes raw materials including aluminates, silicates, and fluorides into high-performance SAW flux (SJ101, SJ301, and custom formulations) for shipbuilding, pipeline, and pressure vessel welding applications.

Professionalism

Thirty years of craftsmanship, deeply rooted in core technology.

Innovation

Continuous process iteration, leading the industry frontier.

Integrity

One-stop premium services throughout the entire product lifecycle.

Global Reach

Projects delivered across China, South Korea and globally.

Our Milestones

1990s
Founded — began rotary kiln manufacturing, laying the foundation of 30 years of craftsmanship
2008
Entered SAW flux production line market — first complete sintered flux line delivered
2014
Pioneered 2nd-generation drum granulation + inner-heating technology for flux production
2018
YULIN Welding project: upgraded from 15,000 to 48,000 TPY — now OEM for Lincoln & ESAB
2023
Export project to South Korea (HYUNDAI Welding) — established global delivery capability
2025+
Expanding globally: India, Southeast Asia, Middle East market development underway
Core Equipment

Complete Production Line Equipment

Six integrated systems forming a complete, automated sintered flux production line — engineered and manufactured in-house.

01

Automatic Batching System

3-point load cells + PLC centralized control
Precise dosing — batch-to-batch consistency
U-shaped screw conveyors with VFD control
Silicate metering & dosing integration
02

Drum Granulator & Dryer (Integrated)

90% one-time granulating success rate
Moisture content ≤0.02% (batch stable)
Fully enclosed — weather-independent
Dual-regulation: cooling fan + hot air control
03

310S Stainless Steel Sintering Rotary Kiln

ASTM 310S SS — no lining, zero contamination
Direct inner heating — 20% higher efficiency
Micro-negative pressure: -50~-30 Pa
Multi-stage PID temp control, one-click formula switch
04

Cooling Kiln

800°C → 60°C rapid counter-current cooling
Heat recovery → feeds back to sintering kiln
VFD synchronized speed control with kiln
Micro-negative pressure dust containment
05

Automated Packaging & Palletizing System

ABB IRB 460 — one of the world's fastest palletizers
400 bags/hour (120 bags/hour vacuum)
Mettler Toledo weighing — ±0.2% accuracy
Siemens PLC + Schneider electrical
06

Central Control System (CCS)

Siemens PLC — centralized control of all units
Large LCD panoramic display room (9m×5m)
Dual hard disk hot standby — history data
Real-time alerts + automatic data reporting
Production Technology

End-to-End Production Process

Every stage is instrumented, controlled, and optimized. From raw material inspection to final packaging — one integrated intelligent system.

1
Raw Material Inspection
Quality gate
2
Auto Batching
±0.2% accuracy
3
Intensive Mixing
Mixer
4
Drum Granulating & Drying
95–500°C
5
Sintering
600–900°C kiln
6
Rapid Cooling
800°C → <60°C
7
Screening
Size classification
8
Final Inspection
Diffusible H <3
9
Auto Packing & Palletizing
Normal/Vacuum bag
Technology Advantage

Why Drum Granulation Wins

Over 80% of Top-10 sintered flux producers globally have adopted drum granulation. The data speaks for itself.

Performance Metric 🥇 Drum Granulation (FUMI) Disc Granulation (Legacy)
Particle StrengthDense, no hollow cores ✓Loose, hollow granules ✗
Moisture Content≤ 0.02% (stable)~0.06% (variable)
Diffusible Hydrogen~3 ml/100g~4.9 ml/100g
Batch ConsistencyExcellent — same batch every runPoor — fluctuates
Humid Environment ImpactMinimal impactSignificant degradation
High-End Flux SuitabilityPreferred for SJ101 & low-H fluxDifficult to achieve
Industry Adoption (Top 10)> 80% of top producers< 20% remaining
Client Cases

Trusted by Industry Leaders

Our production lines are running 24/7 in some of the largest flux facilities in Asia.

YULIN Welding
🇨🇳 China · Henan
48,000 TPY
Annual Production Capacity
Industry Top 3 OEM Lincoln OEM ESAB
Golden Bridge Welding
🇨🇳 China · Tianjin
36,000 TPY
18,000 × 2 Lines
2nd Line Expansion After 1st Success
GULITE New Materials
🇨🇳 China
30,000 TPY
Full Line Upgrade
Drum Upgrade Inner Heating
HYUNDAI Welding
🇰🇷 South Korea
5,000 TPY
Annual Production Capacity
Export Project Full Turnkey
Our Services

One-Stop Industrial Service Provider

From feasibility study to stable production — we partner with you through every phase of your turnkey flux plant project.

Design

Customized process planning, factory layout optimization (folding & sunken designs).

Manufacturing

High-precision industrial equipment production for every component of the line.

Consulting

Feasibility studies, technical route planning, process diagnostics for existing lines.

Training

Comprehensive operational guidance, maintenance training, and formula knowledge transfer.

Installation

On-site installation and commissioning by our experienced engineering team.

Production Support

Accompany-production service: our engineers stay on-site until stable production is achieved.

After-Sales

Spare parts supply, remote diagnosis, on-site maintenance — full lifecycle support.

Formula Service

Market-leading flux formulas + raw-material-based formula fine-tuning for your conditions.

Frequently Asked Questions

Common Questions About SAW Flux Production

Quick answers to the questions we hear most often from potential clients worldwide.

How much does a SAW flux production line cost?

A complete SAW flux production line investment varies significantly based on capacity (5,000 to 50,000+ TPY), automation level, and equipment configuration. FUMI Consulting provides customized quotations after understanding your specific requirements — including target capacity, raw materials, and site conditions. Contact us for a free preliminary consultation and budget estimate.

What is the difference between agglomerated and sintered flux?

Agglomerated flux is produced by low-temperature baking (~500°C) after mixing raw materials with potassium/sodium silicate binders, resulting in lower particle strength and higher moisture sensitivity. Sintered flux undergoes high-temperature sintering (600–900°C) in a rotary kiln, producing dense, high-strength particles with diffusible hydrogen below 3ml/100g. Over 80% of top global flux producers now use drum granulation with sintering technology for superior quality.

Who are the top SAW flux equipment manufacturers in China?

FUMI Consulting is one of China's leading SAW flux production line manufacturers with 30+ years of rotary kiln expertise and 15+ years of dedicated flux line experience. Our clients include YULIN Welding (Lincoln & ESAB OEM), Golden Bridge Welding, GULITE New Materials, and HYUNDAI Welding (South Korea export project).

How to set up a flux manufacturing plant?

Setting up a SAW flux manufacturing plant typically involves: (1) Feasibility study and market analysis, (2) Process design and technology selection, (3) Factory layout planning (FUMI's folding design saves 15m+ floor space), (4) Equipment manufacturing and procurement, (5) Installation and commissioning, (6) Production ramp-up and formula optimization. FUMI Consulting provides end-to-end turnkey service covering all phases.

What capacity flux production line do I need?

The right capacity depends on your market demand and growth plans. Entry-level lines start at 3,000–5,000 TPY, mid-scale at 15,000–30,000 TPY, and large-scale lines reach 48,000+ TPY. FUMI has delivered lines across this full range. Our consulting team can help you assess market demand and recommend the optimal capacity for your specific situation.
